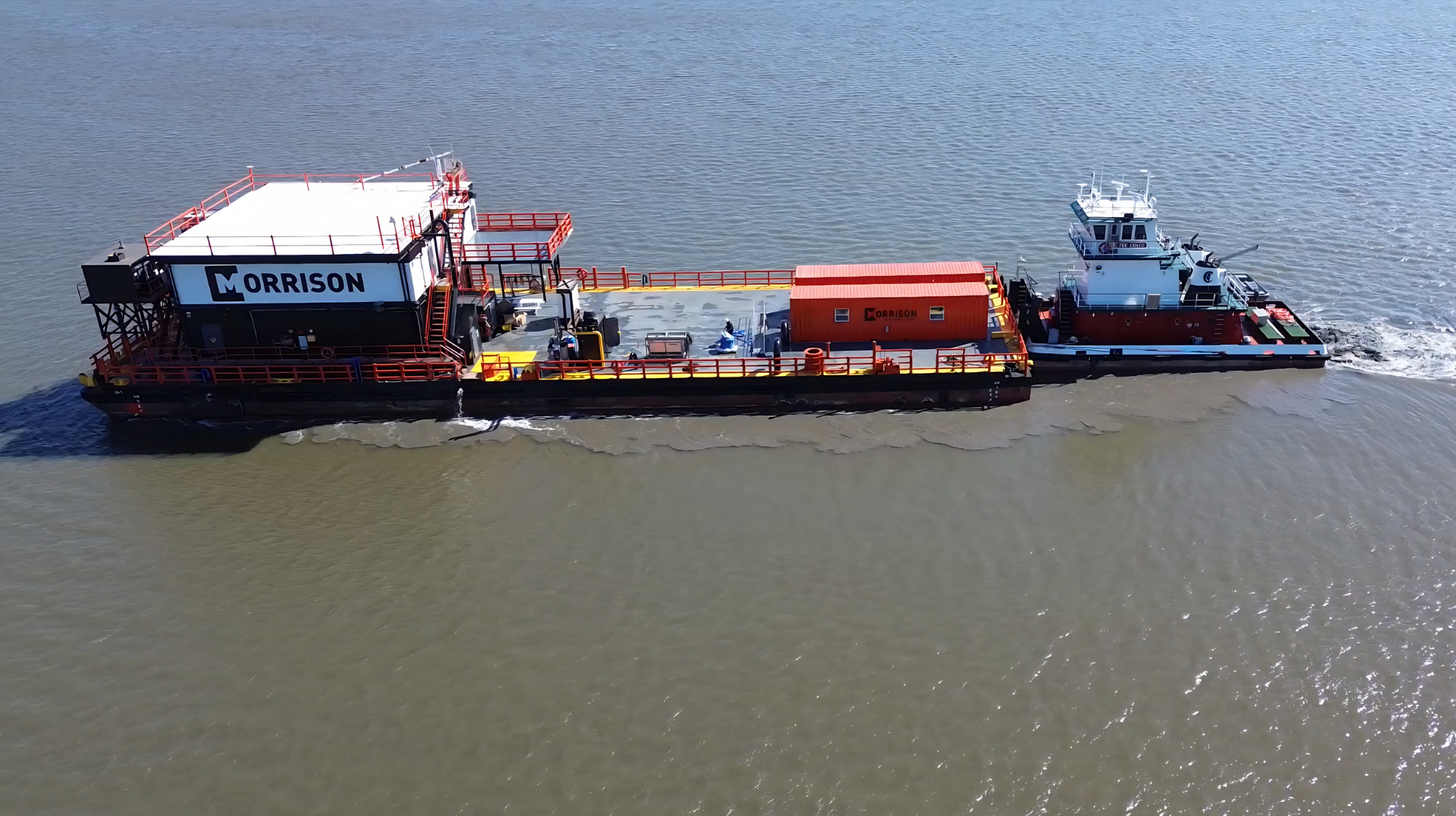

PIPELAY/BURY BARGE
180’ x 54’ pipelay vessel with 5’ draft and 150-ton crane capacity, this vessel has capabilities to lay pipe up to 36” in diameter. Vanuatu flagged vessel.
Download Spec SheetLength: 180 ft
Width: 54 ft
Depth: 12 ft
Vessel draft: 5 ft
Capacity: 2 in to 27 in
Can be modified to fit up to 36 in pipe
Work stations: 4
Tensioner: 50 kip track type
Stinger: 50 ft
Welding stalls: 2
HPU unit: Electric / Hydraulic
Capacity: 150-ton
Make: Manitowoc 4,000 W (Vicon)
Boom length: 120 ft
Total accommodations: 44 persons
Flag / Load line: Vanuatu
Generators: (2) 150 kw
(1) HiPower IVECO 350 kw Generator-HFW350 T6U 60 hz
(1) 60 kw Emergency generator
Air compressors: (1) 185 cfm, 125 psi
Air tugger: (1) Ingersoll Rand manual drum
Brake / Throttle control on winch
Welding machines: (6) 400-amp electric
Winches: (1) American 280, triple drum
(2) Amcon 385, double drum
(1) Amcon 385, double long drum winch
Anchors: (8) 10,000 lbs stockless
Anchor cables: (8) 3,000 ft x 1.0 in
Fuel: 47,000 gal
Water: 86,000 gal
Diving station, deep air and gas surface
(2) Decompression chambers
(2) Below deck air compressors
